Duplicate from PaddlePaddle/ERNIE-Layout

Co-authored-by: Linjie Chen <[email protected]>

.gitattributes

@@ -0,0 +1,33 @@
+*.7z filter=lfs diff=lfs merge=lfs -text
+*.arrow filter=lfs diff=lfs merge=lfs -text
+*.bin filter=lfs diff=lfs merge=lfs -text
+*.bz2 filter=lfs diff=lfs merge=lfs -text
+*.ftz filter=lfs diff=lfs merge=lfs -text
+*.gz filter=lfs diff=lfs merge=lfs -text
+*.h5 filter=lfs diff=lfs merge=lfs -text
+*.joblib filter=lfs diff=lfs merge=lfs -text
+*.lfs.* filter=lfs diff=lfs merge=lfs -text
+*.model filter=lfs diff=lfs merge=lfs -text
+*.msgpack filter=lfs diff=lfs merge=lfs -text
+*.npy filter=lfs diff=lfs merge=lfs -text
+*.npz filter=lfs diff=lfs merge=lfs -text
+*.onnx filter=lfs diff=lfs merge=lfs -text
+*.ot filter=lfs diff=lfs merge=lfs -text
+*.parquet filter=lfs diff=lfs merge=lfs -text
+*.pickle filter=lfs diff=lfs merge=lfs -text
+*.pkl filter=lfs diff=lfs merge=lfs -text
+*.pb filter=lfs diff=lfs merge=lfs -text
+*.pt filter=lfs diff=lfs merge=lfs -text
+*.pth filter=lfs diff=lfs merge=lfs -text
+*.rar filter=lfs diff=lfs merge=lfs -text
+saved_model/**/* filter=lfs diff=lfs merge=lfs -text
+*.tar.* filter=lfs diff=lfs merge=lfs -text
+*.tflite filter=lfs diff=lfs merge=lfs -text
+*.tgz filter=lfs diff=lfs merge=lfs -text
+*.wasm filter=lfs diff=lfs merge=lfs -text
+*.xz filter=lfs diff=lfs merge=lfs -text
+*.zip filter=lfs diff=lfs merge=lfs -text
+*.zst filter=lfs diff=lfs merge=lfs -text
+*tfevents* filter=lfs diff=lfs merge=lfs -text
+*.png filter=lfs diff=lfs merge=lfs -text
+*.jpeg filter=lfs diff=lfs merge=lfs -text

README.md

@@ -0,0 +1,14 @@
+---
+title: ERNIE-Layout
+emoji: 🧾
+colorFrom: gray
+colorTo: pink
+sdk: gradio
+sdk_version: 3.4.1
+app_file: app.py
+pinned: false
+license: apache-2.0
+duplicated_from: PaddlePaddle/ERNIE-Layout
+---
+
+Check out the configuration reference at https://huggingface.co/docs/hub/spaces-config-reference

app.py

@@ -0,0 +1,522 @@
+#-*- coding: UTF-8 -*-
+# Copyright 2022 The Impira Team and the HuggingFace Team.
+# Copyright (c) 2022 PaddlePaddle Authors. All Rights Reserved.
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+#     http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import os
+import json
+import base64
+from io import BytesIO
+from PIL import Image
+import traceback
+
+import requests
+import numpy as np
+import gradio as gr
+import pdf2image
+import fitz
+import cv2
+
+fitz_tools = fitz.Tools()
+
+
+def pdf2img(stream, pagenos, dpi=300, thread_count=3, height=1600):
+    images = []
+    cimages = pdf2image.convert_from_bytes(
+        stream, dpi=dpi, thread_count=thread_count, first_page=pagenos[0] + 1, last_page=pagenos[-1] + 1,
+        size=height)
+    for _image in cimages:
+        image = np.array(_image)
+        image = image[..., ::-1]
+        images.append(image)
+    return images
+
+
+class PdfReader(object):
+    """pdf reader"""
+    def __init__(self,
+                 stream: bytes,
+                 image_height: int = 1600):
+        self.stream = stream
+        self._image_height = image_height
+        self._dpi = 200
+        self._inpdf = self.load_file(stream)
+
+    @staticmethod
+    def load_file(stream):
+        """load document"""
+        try:
+            inpdf = fitz.Document(stream=stream, filetype="pdf")
+        except Exception as e:
+            print(f"[PDF_READER]-[Failed to load the file]-[{repr(e)}]")
+        return inpdf
+
+    @staticmethod
+    def _convert_page_obj_to_image(page_obj, image_height: int = None):
+        """fitz convert pdf to image
+
+        Args:
+            page_obj ([type]): [description]
+            ratio ([type]): [description]
+
+        Returns:
+            [type]: [description]
+        """
+        if image_height:
+            _, page_height = page_obj.rect.x1 - \
+                page_obj.rect.x0, page_obj.rect.y1 - page_obj.rect.y0
+            ratio = image_height / page_height
+        else:
+            ratio = 1.0
+        trans = fitz.Matrix(ratio, ratio)
+        pixmap = page_obj.get_pixmap(matrix=trans, alpha=False)
+        image = cv2.imdecode(np.frombuffer(pixmap.tobytes(), np.uint8), -1)
+        fitz_tools.store_shrink(100)
+        return image
+
+    def get_page_image(self,
+                       pageno):
+        """get page image
+
+        Args:
+            pageno ([type]): [description]
+
+        Returns:
+            [type]: [description]
+        """
+        try:
+            page_obj = self._inpdf[pageno]
+            return self._convert_page_obj_to_image(page_obj, self._image_height)
+        except Exception as e:
+            print(f"[Failed to convert the PDF to images]-[{repr(e)}]")
+        try:
+            return pdf2img(stream=self.stream,
+                           pagenos=[pageno],
+                           height=self._image_height,
+                           dpi=self._dpi)[0]
+        except Exception as e:
+            print(f"[Failed to convert the PDF to images]-[{repr(e)}]")
+        return None
+
+
+examples = [
+    [
+        "budget_form.png",
+        "What is the total actual and/or obligated expenses of ECG Center?"
+    ],
+    [
+        "poster.png",
+        "Which gift idea needs a printer?"
+    ],
+        [
+        "receipt.png",
+        "เบอร์โทรร้านอะไรคะ?"
+    ],
+    [
+        "medical_bill_2.jpg",
+        "患者さんは何でお金を払いますか。"
+    ],
+    [
+        "resume.png",
+        "五百丁本次想要担任的是什么职位?",
+    ],
+    [

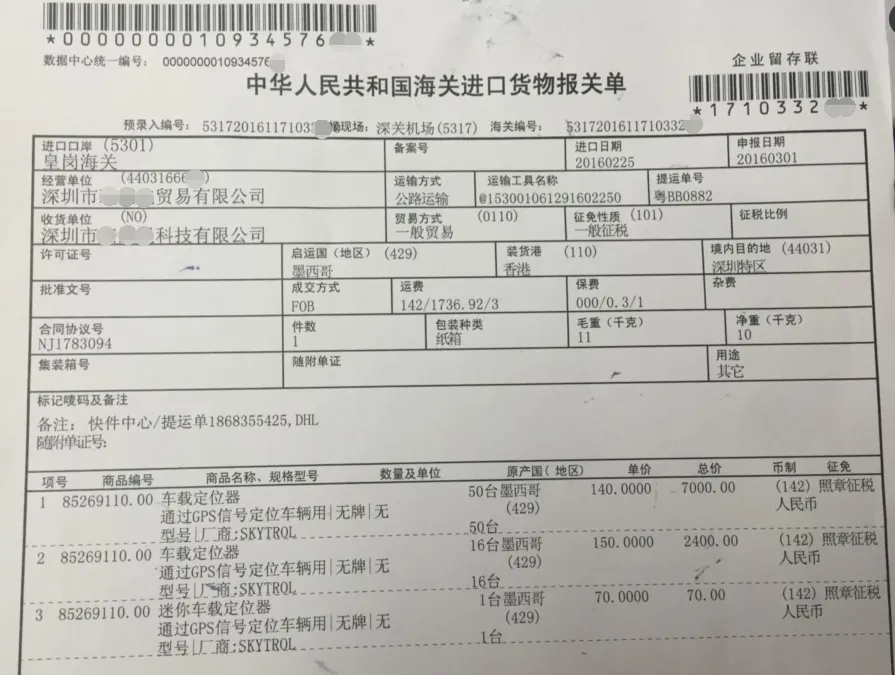

+        "custom_declaration_form.png",
+        "在哪个口岸进口？"
+    ],
+    [
+        "invoice.jpg",
+        "发票号码是多少?",
+    ],
+]
+
+prompt_files = {
+    "发票号码是多少?": "invoice.jpg",
+    "五百丁本次想要担任的是什么职位?": "resume.png",
+    "在哪个口岸进口？": "custom_declaration_form.png",
+    "What is the total actual and/or obligated expenses of ECG Center?": "budget_form.png",
+    "Which gift idea needs a printer?": "poster.png",
+    "患者さんは何でお金を払いますか。": "medical_bill_2.jpg",
+    "เบอร์โทรร้านอะไรคะ?": "receipt.png",
+}
+
+lang_map = {
+    "invoice.jpg": "ch",
+    "resume.png": "ch",
+    "custom_declaration_form.png": "ch",
+    "medical_bill_1.png": "ch",
+    "budget_form.png": "en",
+    "website_design_guide.jpeg": "en",
+    "poster.png": "en",
+    "medical_bill_2.jpg": "ch",
+    "receipt.png": "en"
+}
+
+
+def load_document(path):
+    if path.startswith("http://") or path.startswith("https://"):
+        resp = requests.get(path, allow_redirects=True, stream=True)
+        b = resp.raw
+    else:
+        b = open(path, "rb")
+
+    if path.endswith(".pdf"):
+        images_list = []
+        pdfreader = PdfReader(stream=b.read())
+        for p_no in range(0, pdfreader._inpdf.page_count):
+            img_np = pdfreader.get_page_image(pageno=p_no)
+            images_list.append(img_np)
+    else:
+        image = Image.open(b)
+        images_list = [np.array(image.convert("RGB"))]
+    return images_list
+
+def process_path(path):
+    error = None
+    if path:
+        try:
+            images_list = load_document(path)
+            return (
+                path,
+                gr.update(visible=True, value=images_list),
+                gr.update(visible=True),
+                gr.update(visible=False, value=None),
+                gr.update(visible=False, value=None),
+                None,
+            )
+        except Exception as e:
+            traceback.print_exc()
+            error = str(e)
+    return (
+        None,
+        gr.update(visible=False, value=None),
+        gr.update(visible=False),
+        gr.update(visible=False, value=None),
+        gr.update(visible=False, value=None),
+        gr.update(visible=True, value=error) if error is not None else None,
+        None,
+    )
+
+
+def process_upload(file):
+    if file:
+        return process_path(file.name)
+    else:
+        return (
+            None,
+            gr.update(visible=False, value=None),
+            gr.update(visible=False),
+            gr.update(visible=False, value=None),
+            gr.update(visible=False, value=None),
+            None,
+        )
+
+
+def np2base64(image_np):
+    image = cv2.imencode('.jpg', image_np)[1]
+    base64_str = str(base64.b64encode(image))[2:-1]
+    return base64_str
+
+
+def get_base64(path):
+    if path.startswith("http://") or path.startswith("https://"):
+        resp = requests.get(path, allow_redirects=True, stream=True)
+        b = resp.raw
+    else:
+        b = open(path, "rb")
+
+    if path.endswith(".pdf"):
+        images_list = []
+        pdfreader = PdfReader(stream=b.read())
+        for p_no in range(0, min(pdfreader._inpdf.page_count, 1)):
+            img_np = pdfreader.get_page_image(pageno=p_no)
+            images_list.append(img_np)
+        base64_str = np2base64(images_list[0])
+    else:
+        base64_str = base64.b64encode(b.read()).decode()
+    return base64_str
+
+
+def process_prompt(prompt, document, lang="ch", model="docprompt_v1"):
+    if not prompt:
+        prompt = "What is the total actual and/or obligated expenses of ECG Center?"
+    if document is None:
+        return None, None, None
+
+    access_token = os.environ['token']
+    url = f"https://aip.baidubce.com/rpc/2.0/nlp-itec/poc/docprompt?access_token={access_token}"
+
+    base64_str = get_base64(document)
+
+    r = requests.post(url, json={"doc": base64_str, "prompt": [prompt], "lang": lang, "model": model})
+    response = r.json()
+    predictions = response['result']
+    img_list = response['image']
+    pages = [Image.open(BytesIO(base64.b64decode(img))) for img in img_list]
+
+    text_value = predictions[0]['result'][0]['value']
+
+    return (
+        gr.update(visible=True, value=pages),
+        gr.update(visible=True, value=predictions),
+        gr.update(
+            visible=True,
+            value=text_value,
+        ),
+    )
+
+
+def load_example_document(img, prompt):
+    if img is not None:
+        document = prompt_files[prompt]
+        lang = lang_map[document]
+        preview, answer, answer_text = process_prompt(prompt, document, lang, "docprompt_v1")
+        return document, prompt, preview, gr.update(visible=True), answer, answer_text
+    else:
+        return None, None, None, gr.update(visible=False), None, None
+
+
+def read_content(file_path: str) -> str:
+    """read the content of target file
+    """
+    with open(file_path, 'r', encoding='utf-8') as f:
+        content = f.read()
+
+    return content
+
+
+CSS = """
+#prompt input {
+    font-size: 16px;
+}
+#url-textbox {
+    padding: 0 !important;
+}
+#short-upload-box .w-full {
+    min-height: 10rem !important;
+}
+/* I think something like this can be used to re-shape
+ * the table
+ */
+/*
+.gr-samples-table tr {
+    display: inline;
+}
+.gr-samples-table .p-2 {
+    width: 100px;
+}
+*/
+#select-a-file {
+    width: 100%;
+}
+#file-clear {
+    padding-top: 2px !important;
+    padding-bottom: 2px !important;
+    padding-left: 8px !important;
+    padding-right: 8px !important;
+	margin-top: 10px;
+}
+.gradio-container .gr-button-primary {
+    background: linear-gradient(180deg, #CDF9BE 0%, #AFF497 100%);
+    border: 1px solid #B0DCCC;
+    border-radius: 8px;
+    color: #1B8700;
+}
+.gradio-container.dark button#submit-button {
+    background: linear-gradient(180deg, #CDF9BE 0%, #AFF497 100%);
+    border: 1px solid #B0DCCC;
+    border-radius: 8px;
+    color: #1B8700
+}
+table.gr-samples-table tr td {
+    border: none;
+    outline: none;
+}
+table.gr-samples-table tr td:first-of-type {
+    width: 0%;
+}
+div#short-upload-box div.absolute {
+    display: none !important;
+}
+gradio-app > div > div > div > div.w-full > div, .gradio-app > div > div > div > div.w-full > div {
+    gap: 0px 2%;
+}
+gradio-app div div div div.w-full, .gradio-app div div div div.w-full {
+    gap: 0px;
+}
+gradio-app h2, .gradio-app h2 {
+    padding-top: 10px;
+}
+#answer {
+    overflow-y: scroll;
+    color: white;
+    background: #666;
+    border-color: #666;
+    font-size: 20px;
+    font-weight: bold;
+}
+#answer span {
+    color: white;
+}
+#answer textarea {
+    color:white;
+    background: #777;
+    border-color: #777;
+    font-size: 18px;
+}
+#url-error input {
+    color: red;
+}
+"""
+
+with gr.Blocks(css=CSS) as demo:
+    gr.HTML(read_content("header.html"))
+    gr.Markdown(
+        "DocPrompt🔖 is a Document Prompt Engine using ERNIE-Layout as the backbone model."
+        "The engine is powered by BAIDU WenXin Document Intelligence Team "
+        "and has the ability for multilingual documents information extraction and question ansering. "
+        "For more details, please visit the [Github](https://github.com/PaddlePaddle/PaddleNLP/tree/develop/model_zoo/ernie-layout)."
+        "ERNIE-Layout paper please refer to [ERNIE-Layout](https://paperswithcode.com/paper/ernie-layout-layout-knowledge-enhanced-pre)"
+    )
+
+    document = gr.Variable()
+    example_prompt = gr.Textbox(visible=False)
+    example_image = gr.Image(visible=False)
+    with gr.Row(equal_height=True):
+        with gr.Column():
+            with gr.Row():
+                gr.Markdown("## 1. Select a file", elem_id="select-a-file")
+                img_clear_button = gr.Button(
+                    "Clear", variant="secondary", elem_id="file-clear", visible=False
+                )
+            image = gr.Gallery(visible=False)
+            with gr.Row(equal_height=True):
+                with gr.Column():
+                    with gr.Row():
+                        url = gr.Textbox(
+                            show_label=False,
+                            placeholder="URL",
+                            lines=1,
+                            max_lines=1,
+                            elem_id="url-textbox",
+                        )
+                        submit = gr.Button("Get")
+                    url_error = gr.Textbox(
+                        visible=False,
+                        elem_id="url-error",
+                        max_lines=1,
+                        interactive=False,
+                        label="Error",
+                    )
+            gr.Markdown("— or —")
+            upload = gr.File(label=None, interactive=True, elem_id="short-upload-box")
+            gr.Examples(
+                examples=examples,
+                inputs=[example_image, example_prompt],
+            )
+
+        with gr.Column() as col:
+            gr.Markdown("## 2. Make a request")
+            prompt = gr.Textbox(
+                label="Prompt (No restrictions on the setting of prompt. You can type any prompt.)",
+                placeholder="e.g. What is the total actual and/or obligated expenses of ECG Center?",
+                lines=1,
+                max_lines=1,
+            )
+            ocr_lang = gr.Radio(
+                choices=["ch", "en"],
+                value="en",
+                label="Select OCR Language (Please choose ch for Chinese images.)",
+            )
+            model = gr.Radio(
+                choices=["docprompt_v1", "docprompt_v2"],
+                value="docprompt_v1",
+                label="Select Inference Model.",
+            )
+
+            with gr.Row():
+                clear_button = gr.Button("Clear", variant="secondary")
+                submit_button = gr.Button(
+                    "Submit", variant="primary", elem_id="submit-button"
+                )
+            with gr.Column():
+                output_text = gr.Textbox(
+                    label="Top Answer", visible=False, elem_id="answer"
+                )
+                output = gr.JSON(label="Output", visible=False)
+
+    for cb in [img_clear_button, clear_button]:
+        cb.click(
+            lambda _: (
+                gr.update(visible=False, value=None),
+                None,
+                gr.update(visible=False, value=None),
+                gr.update(visible=False, value=None),
+                gr.update(visible=False),
+                None,
+                None,
+                None,
+                gr.update(visible=False, value=None),
+                None,
+            ),
+            inputs=clear_button,
+            outputs=[
+                image,
+                document,
+                output,
+                output_text,
+                img_clear_button,
+                example_image,
+                upload,
+                url,
+                url_error,
+                prompt,
+            ],
+        )
+
+    upload.change(
+        fn=process_upload,
+        inputs=[upload],
+        outputs=[document, image, img_clear_button, output, output_text, url_error],
+    )
+    submit.click(
+        fn=process_path,
+        inputs=[url],
+        outputs=[document, image, img_clear_button, output, output_text, url_error],
+    )
+
+    prompt.submit(
+        fn=process_prompt,
+        inputs=[prompt, document, ocr_lang, model],
+        outputs=[image, output, output_text],
+    )
+
+    submit_button.click(
+        fn=process_prompt,
+        inputs=[prompt, document, ocr_lang, model],
+        outputs=[image, output, output_text],
+    )
+
+    example_image.change(
+        fn=load_example_document,
+        inputs=[example_image, example_prompt],
+        outputs=[document, prompt, image, img_clear_button, output, output_text],
+    )
+
+    gr.Markdown("[![Stargazers repo roster for @PaddlePaddle/PaddleNLP](https://reporoster.com/stars/PaddlePaddle/PaddleNLP)](https://github.com/PaddlePaddle/PaddleNLP)")
+    gr.HTML(read_content("footer.html"))
+
+
+if __name__ == "__main__":
+    demo.launch(enable_queue=False)

footer.html

@@ -0,0 +1,4 @@
+<div class="footer">
+    <p>Model by <a href="https://github.com/PaddlePaddle/PaddleNLP" style="text-decoration: underline;" target="_blank">PaddleNLP</a> - Gradio Demo by 🤗 Hugging Face
+    </p>
+</div>

header.html

@@ -0,0 +1,31 @@
+<div style="text-align: center; max-width: 650px; margin: 0 auto;">
+    <div
+      style="
+        display: inline-flex;
+        gap: 0.8rem;
+        font-size: 1.75rem;
+        margin-bottom: 10px;
+        margin-left: 220px;
+        justify-content: center;
+      "
+    >
+    <a href="https://github.com/PaddlePaddle/PaddleNLP"><img src="https://user-images.githubusercontent.com/1371212/175816733-8ec25eb0-9af3-4380-9218-27c154518258.png" alt="PaddleNLP" width="60%"></a>
+    </div>
+    <div
+      style="
+        display: inline-flex;
+        align-items: center;
+        gap: 0.8rem;
+        font-size: 1.75rem;
+        margin-bottom: 10px;
+        justify-content: center;
+      ">
+    <a href="https://github.com/PaddlePaddle/PaddleNLP/tree/develop/model_zoo/ernie-layout"><h1 style="font-weight: 900; align-items: center; margin-bottom: 7px;">
+      ERNIE-Layout DocPrompt Engine 🧾
+    </h1></a>
+    </div>
+    <!-- <p style="margin-bottom: 10px; font-size: 94%">
+      DocPrompt🔖 is a Document Prompt Engine using [ERNIE-Layout](https://github.com/PaddlePaddle/PaddleNLP/tree/develop/model_zoo/ernie-layout) as the backbone model. The engine is powered by BAIDU WenXin Document Intelligence Team and has the ability for multilingual documents information extraction and question ansering.
+    </p> -->
+    <a href="https://github.com/PaddlePaddle/PaddleNLP"><img src="https://user-images.githubusercontent.com/40840292/195516769-c4452d7c-3f9e-446f-8f9d-882b99052a5b.png" width="100%"></a>
+  </div>

requirements.txt

@@ -0,0 +1,5 @@
+numpy
+opencv-python
+pdf2image
+PyMuPDF
+requests
